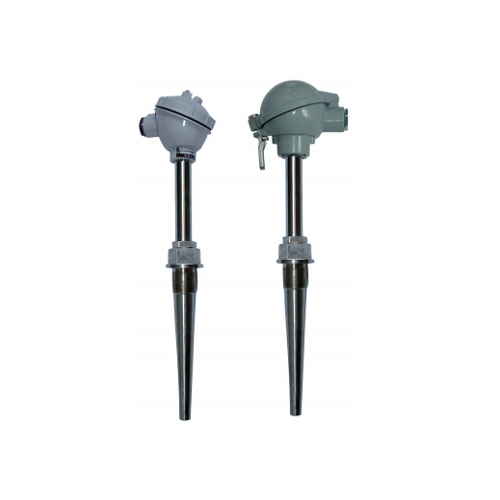

Taper Thermocouple With Fixed Thread

Name: Taper Thermocouple With Fixed Thread
Brand: Purack Website
SKU: 00508
Availability: InStock
Rating: 5 (1 reviews)

Model 00508

Product implementation standards：IEC 584 ; JB/T9238-1999 .
Ambient temperature insulation resistance .
The thermocouple at ambient temperature is 20 + 15 C, the relative humidity is not greater than 80%, the test voltage is 500 + 50V (DC), the insulation resistance between the electrode and the outer sleeve is more than 1000 MΩ .m
Simple assembly and convenient replacement.
The pressure spring type temperature sensing element has good anti vibration performance.
The scope of measurement is large.
High mechanical strength, good pressure resistance .

Inquiry

Description

The electrodes of the thermocouple are made up of two different conductor materials. When there is a temperature difference between the measuring end and the reference end, the thermo electric potential is generated, and the working instrument displays the temperature corresponding to the thermal potential. It is usually used in conjunction with display instruments, recording instruments, computers and so on. Direct measurement of liquid, steam and gas medium and solid surface temperature at 0~1300 C in various production processes.

Standard Parameter

Type	Dividing sign	Temperature range ℃	Thermal response time	Protective tube material	Gauge lattice
					D	L
WRM-620 WRM2-620	N	0～800	＜90s	1Cr18Ni9Ti	Φ15	300×150 350×200 400×250 450×300 500×350 550×400 650×500
		0～1100		0Cr25Ni20
WRM-620G WRM2-620G		0～800		1Cr18Ni9Ti
		0～1100		0Cr25Ni20
WRN-620 WRN2-620	K	0～800		1Cr18Ni9Ti
		0～1100		0Cr25Ni20
WRN-620G WRN2-620G		0～800		1Cr18Ni9Ti
		0～1100		0Cr25Ni20
WRE-620 WRE2-620	E	0~800		1Cr18Ni9Ti
WRE-620G WRE2-620G
WRC-620 WRC2-620	T	0~350		1Cr18Ni9Ti
WRC-620G WRC2-620G
WRF-620 WRF2-620	J	0~600		1Cr18Ni9Ti
WRF-620G WRF2-620G
WRM-630 WRM2-630	N	0～800		1Cr18Ni9Ti
		0～1100		0Cr25Ni20
WRM-630G WRM2-630G		0～800		1Cr18Ni9Ti
		0～1100		0Cr25Ni20
WRN-630 WRN2-630	K	0～800		1Cr18Ni9Ti
		0～1100		0Cr25Ni20
WRN-630G WRN2-630G		0～800		1Cr18Ni9Ti
		0～1100		0Cr25Ni20
WRE-630 WRE2-630	E	0~800		1Cr18Ni9Ti
WRE-630G WRE2-630G
WRC-630 WRC2-630	T	0~350		1Cr18Ni9Ti
WRC-630G WRC2-630G
WRF-630 WRF2-630	J	0~600		1Cr18Ni9Ti
WRF-630G WRF2-630G

1.Models 620 and 620G are blowout preventer, protection class IP65; Models 630 and 630G are waterproof, protection class IP55.

2.Other materials of the protective tube shall be ordered according to the agreement;

3.Nominal pressure ≤15MPa.

Taper Thermocouple With Fixed Thread

Temperature class:
