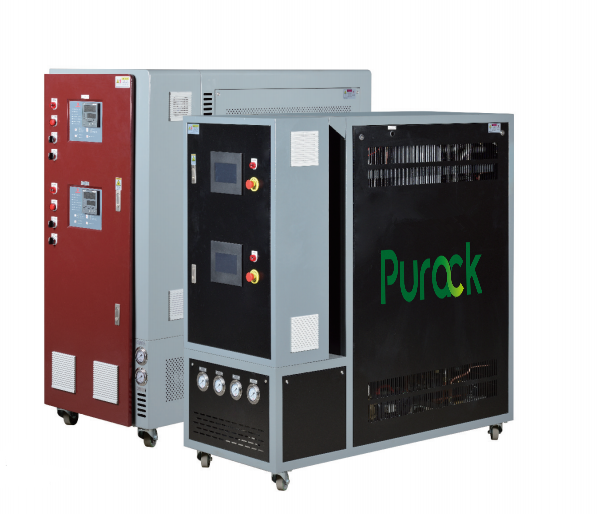

High-temperature Water Temperature Control Unit

Model 86547
  • Explosion-proof equipment(optional) .
  • Air blowing and return water function(optional) .
  • Display for return water temperature .
  • Automatic air-exhausting function after startupm .
  • Switchover of heating power .
  • RS485 communication function for automated management(optional) .
  • BY-PASS pressure release loop for hot water .
  • Customizable multi-point temperature control unit .
  • Customizable horsepower and heating power of oil pump .
  • Brands SIEMGNS.Weidmuller,LS,MOELLER,ABB and WEEST for electric appliances .
  • Range of temperature control:+45℃→180℃ for incoming water .
  • Special Equipment Manufacturing License Qualification for The Pipe Component .
  • Control mode.-imported microcomputer or PLC(optional) .
  • Heating-conducting Medium:
    Water
  • Temperature Control Range:
    +45℃-180℃
  • Heating Capacity:
    9-24
Description

The heat conduction medium of the water temperature machine is water. Under the condition of regulating the temperature, the heat conduction effect of the media of the water temperature machine is better. Under normal atmospheric pressure, the boiling point of water is 100℃, in the case of no pressure, the control temperature of the water temperature machine can only be less than or equal to 100℃. In practical application, by increasing the pipeline pressure, the temperature control temperature of the water temperature machine can be raised to 180℃, thus expanding the application range of the water temperature machine.
Standard Parameter
ITEM UNIT MODEL
AEWH-10 AEWH-20 AEWT-10 AEWT-20 AEWT-30
Temp control range Inlet water temperature +45℃-150℃ Inlet water temperature +45℃-180℃
Temp cantrol aocuracy PID土1℃
Pcwer supply AC3P 380/400V 50Hz(3phase+Earth)
Heat transter medium Water
Cooling method Indirect Cooling
Heating capacity kw 9 12 9 12 24
 Pump Horsepower  hp 1 2 1 2 3
Flow of Pump L/min 40 60 95 153 235
pressure of Pump kg/cm²

6 6 12 12 12
Max. power consumption kw 10 14 12 14 26
Alarm function Pump reversal/water shortage/Overlheating/Overloading/High pressure
Colling water pipe inch 1/2 1/2 1/2 1/2 1/2
Circulating water pipe inch 3/8*2 3/8*2 3/8*4 3/8*4 1
Size(LxWxH) mm 700*360*780 700*360*780 700*360*780 700*360*780 900*420*850
Related Products

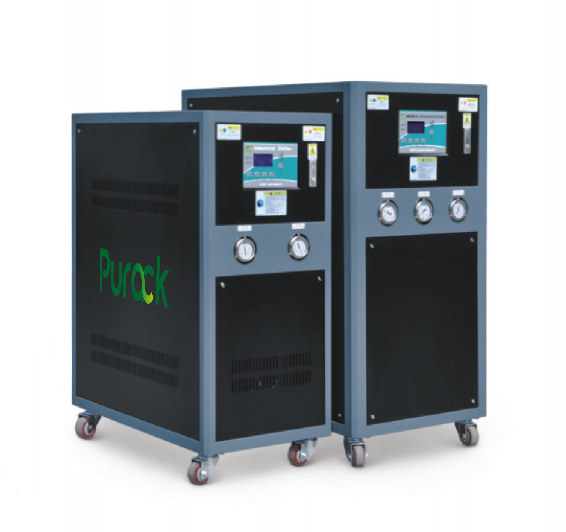

Cooling Capacity:8514-163400kcal/h
Maximum Running Current:9-165

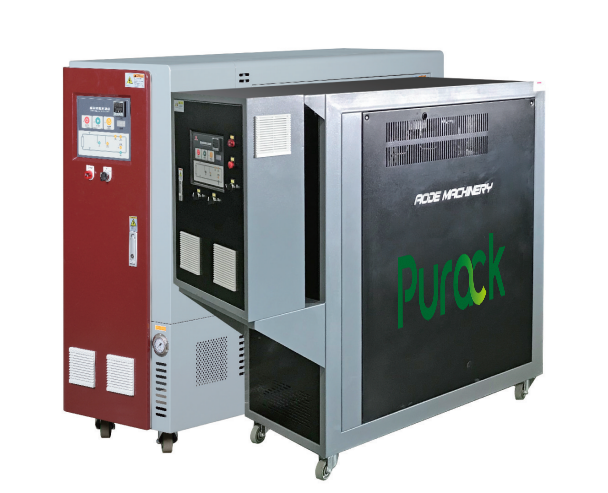

Heating-conducting Medium:Oil
Temperature Control Range: +45℃-320℃

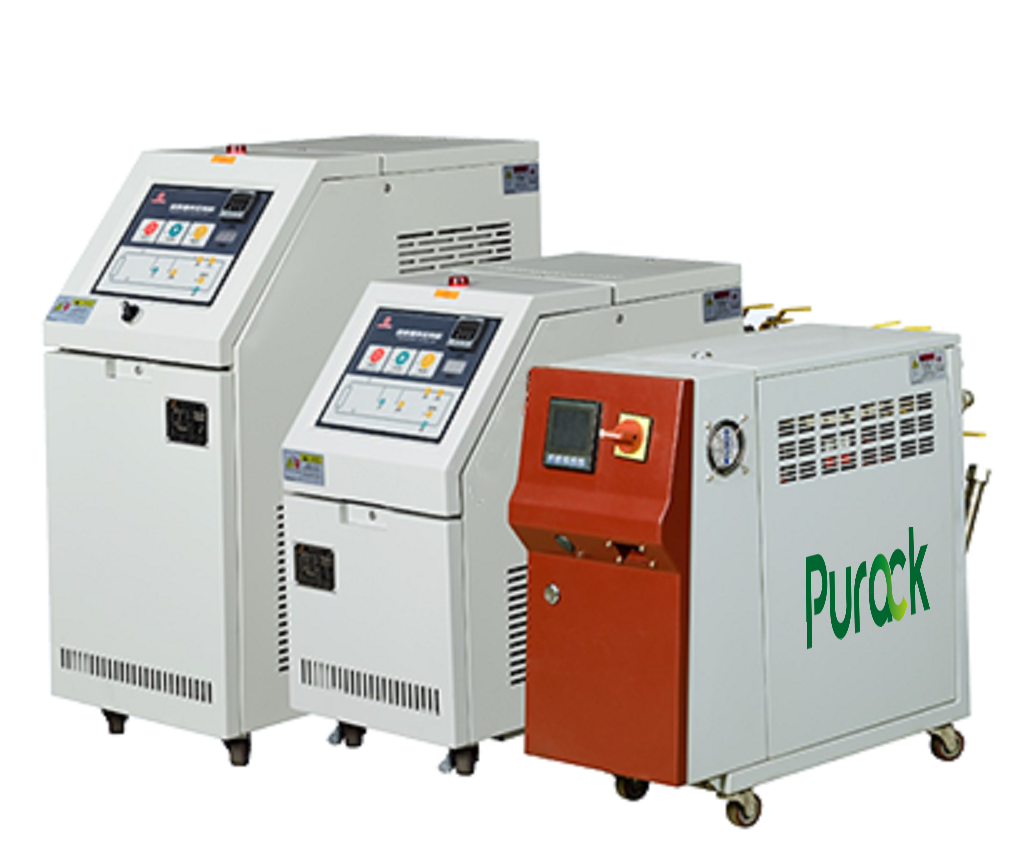

Heating-conducting Medium : Oil
Temperature Control Range: +45℃-180℃

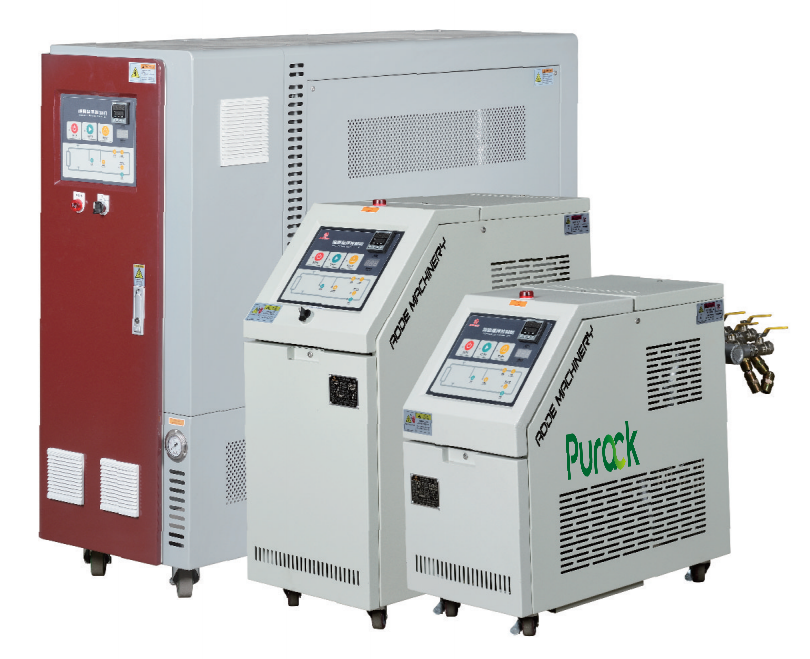

Heat transter medium:Oil
