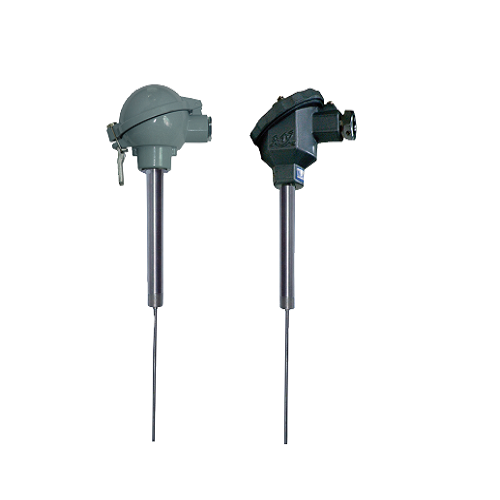

Straight Pipe Joint Type Thermal Resistance

Model 00516
  • Pressure Spring type temperature sensing element, good vibration resistance .
  • No need to compensate wire, save costs .
  • High measuring accuracy .
  • High mechanical strength, good compression performance .
  • Imported thin film resistance components, reliable and stable performance .
  • Product implementation standards : IEC 751; JB/T8622-1997 ;JB/T8623-1997.
  • Room temperature insulation resistance.
  • Thermal resistance at ambient temperature of 15~35℃, relative humidity is not 80%, test electricity.
  • The voltage is 10~100 V (DC). The insulation resistance between the electrode and the outer sleeve is not less than 100MΩ .
  • Temperature class:
    Thermal resistance
Description
Thermal resistance is used to measure the temperature of a substance when the temperature changes, its resistance changes with the characteristics of the temperature. When the resistance value changes, the working instrument will display the corresponding temperature value of the resistance value. Usually and display instrument, recording instrument, electronic computer, etc. Directly measure the temperature of liquid, steam and gas medium and solid surface in the range of -200~500℃ in various production processes.
Standard Parameter

Type

Dividing sign

Temperature range ℃

Connection size

Gauge lattice

D

L

WZP-72
WZP
2-72

 Pt100

 -200~500

M20×1.5

Φ3

Φ4
Φ5
Φ6
Φ8

 250

300

350

400

450

550

650

750

900

1150

WZP-72A
WZP
2-72A



NPT1/2

WZP-73
WZP
2-73

M20×1.5

WZP- 73A
WZP
2-73A



NPT1/2

WZC-72
WZC-72A

 Cu50 Cu100

 -50~100

M20×1.5

Φ5

Φ6
Φ8

NPT1/2

WZC-73
WZC-73A

M20×1.5

NPT1/2

1.Model 73,73A is waterproof, protection class IP55; Type 72,72A is blowout preventer, protection class IP65.
2.If there is no special agreement,L is only the reference size, and the insertion depth of the thermal resistance should be the size of the thermal installation casing U.
