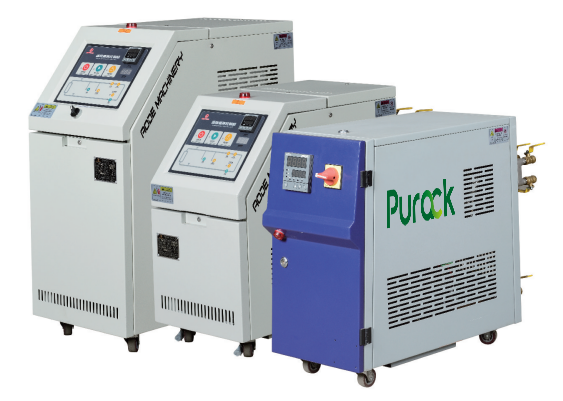

Standard Water Temperature Control Unit

Model 00481
  • Explosion-proof equipment (optional) .
  • Air blowing and return water function (optional) .
  • Display for return water temperature .
  • Automatic air-exhausting function after startup .
  • Switchover of heating power .
  • Instant cooling return oil shut-down function (optional) .
  • RS485 communication function for automated management (optional) .
  • BY-PASS pressure release loop for hot water .
  • Customizable multi-point temperature control unit .
  • Customizable horsepower and heating power of oil pump .
  • Brands SIEMENS.Weidmuller, LS, MOELLER, ABB and WEST for electric appliances .
  • Range of temperature control: +25℃→120℃ for incoming water .
  • Special Equipment Manufacturing License Qualification for The Pipe Component .
  • Control mode imported microcomputer or PLC (optional) .
  • Heating-conducting Medium:
    Water
  • Temperature Control Range:
    +25℃-100℃
  • Heating Capacity:
    6-9
Description

The heat conduction medium of the water temperature machine is water. Under the condition of regulating the temperature, the heat conduction effect of the media of the water temperature machine is better. Under normal atmospheric pressure, the boiling point of water is 100℃, in the case of no pressure, the control temperature of the water temperature machine can only be less than or equal to 100℃. In practical application, by increasing the pipeline pressure, the temperature control temperature of the water temperature machine can be raised to 180℃, thus expanding the application range of the water temperature machine.
Standard Parameter
ITEM UNIT MODEL
AWM-05(A) AWM-10(A) AWM-20 AWP-10 AWMD-10
Temp control range Inlet water temperature +25℃-100℃
Temp cantrol aocuracy PID土1℃
Power supply AC3P 380/400V 50Hz(3phase+Earth)
Heat transter medium Water
Cooling metnoc Direct Cooling
Heating capacity kw 6 9 9 9 9+9
Horsepower of Pump hp 1/0.5 1 2 1 1+1
Flow of Pump L/min 33/26 100/33 150 100 100+100
Pressure of Pump kg/cm 2.0/1.5 1.6/2.0 1.8 1.6 1.6
Max power consumption kw 6.37 9.75 10.5 10.5 19.5
Alarm functicn Pump reversal/Water shortage/Overload
Cooling water pipe inch 1/2 1/2 1/2 1/2 1/2
Circulating water pipe inch 3/8*2 3/8*4 3/8*4 3/8*4 (3/4*4)*2
Size(LxWxH) mm 620*325*645 620*325*645 620*325*645 800*325*640 620*550*640
