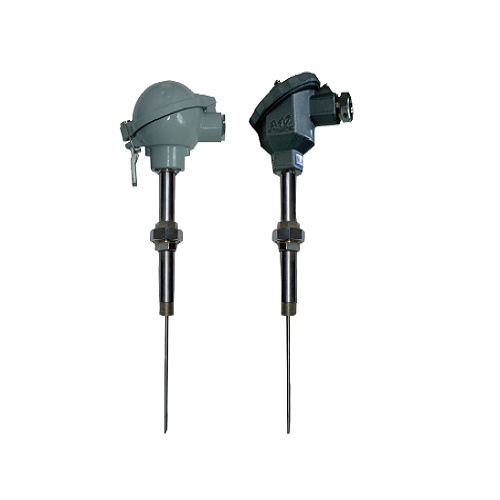

Flexible Tube Joint Type Thermal Resistance

Name: Flexible Tube Joint Type Thermal Resistance
Brand: Purack Website
SKU: 00517
Availability: InStock
Rating: 5 (1 reviews)

Model 00517

Pressure Spring type temperature sensing element, good vibration resistance .
No need to compensate wire, save costs .
High measuring accuracy .
High mechanical strength, good compression performance .
Imported thin film resistance components, reliable and stable performance .
Product implementation standards : IEC 751； JB/T8622-1997 ；JB/T8623-1997.
Room temperature insulation resistance.
Thermal resistance at ambient temperature of 15~35℃, relative humidity is not 80%, test electricity.
The voltage is 10~100 V (DC). The insulation resistance between the electrode and the outer sleeve is not less than 100MΩ .

Inquiry

Description

Thermal resistance is used to measure the temperature of a substance when the temperature changes, its resistance changes with the characteristics of the temperature. When the resistance value changes, the working instrument will display the corresponding temperature value of the resistance value. Usually and display instrument, recording instrument, electronic computer, etc. Directly measure the temperature of liquid, steam and gas medium and solid surface in the range of -200℃~500℃ in various production processes.

Standard Parameter

Type	Dividing sign	Temperature range ℃	Connection size	Gauge lattice
				D	L
WZP-52 WZP2-52	Pt100	-200~500	M20×1.5	Φ3 Φ4 Φ5 Φ6 Φ8	250 300 350 400 450 550 650 750 900 1150
WZP-52A WZP2-52A			NPT1/2
WZP-53 WZP2-53			M20×1.5
WZP- 53A WZP2-53A			NPT1/2
WZC-52 WZC-52A	Cu50 Cu100	-50~100	M20×1.5	Φ5 Φ6 Φ8
			NPT1/2
WZC-53 WZC-53A			M20×1.5
			NPT1/2

1. Model 53,53A is waterproof, protection class IP55; Type 52,52A is blowout preventer, protection class IP65;

2.If there is no special agreement,L is only the reference size, and the insertion depth of the thermal resistance should be the size of the thermal installation casing U .

Flexible Tube Joint Type Thermal Resistance

Temperature class:
