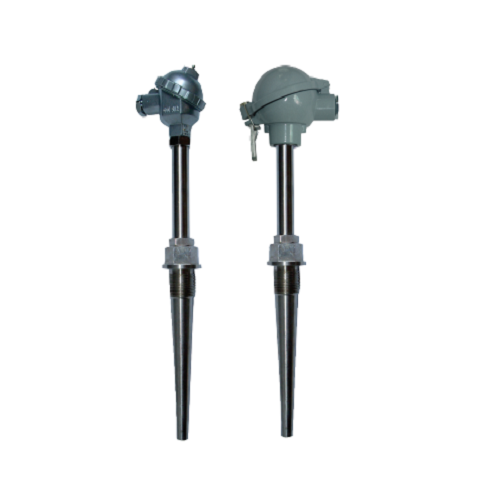

Fixed Threaded Tapered Thermal Resistance

Model 00515
  • Pressure Spring type temperature sensing element, good vibration resistance .
  • No need to compensate wire, save costs .
  • High measuring accuracy .
  • High mechanical strength, good compression performance .
  • Imported thin film resistance components, reliable and stable performance .
  • Product implementation standards : IEC 751; JB/T8622-1997 ;JB/T8623-1997.
  • Room temperature insulation resistance.
  • Thermal resistance at ambient temperature of 15~35℃, relative humidity is not 80%, test electricity.
  • The voltage is 10~100 V (DC). The insulation resistance between the electrode and the outer sleeve is not less than 100MΩ .
  • Temperature class:
    Thermal resistance
Description
Thermal resistance is used to measure the temperature of a substance when the temperature changes, its resistance changes with the characteristics of the temperature. When the resistance value changes, the working instrument will display the corresponding temperature value of the resistance value. Usually and display instrument, recording instrument, electronic computer, etc. Directly measure the temperature of liquid, steam and gas medium and solid surface in the range of -200~500℃ in various production processes.
Standard Parameter

Type

Dividing sign

Temperature range ℃

Thermal response time

Gauge lattice

D

L

WZP-620















300×150

350×200

400×250

450×300

500×350

550×400

650×500

WZP2-620









WZP-620A









WZP2-620A

Pt100

-200~500





WZP-630

WZP2-630





90s

Φ15

WZP- 630A

WZP2-630A









WZC-620









WZC-620A

Cu50

Cu100

-50~100





WZC-630

WZC-630A









1.Models 620 and 621 are blowout preventer, protection class IP65; Models 630 and 631 are waterproof, protection class IP55.
2.The material of the protective tube is 1Cr18Ni9Ti, and the rest materials shall be ordered according to the agreement.
3.Nominal pressure ≤15MPa.

Type

Thread specification

Proxy number

M

WZP-620



M33×2

WZP-620A

A

NPT1

WZP-630



M33×2

WZP-630A

A

NPT1
