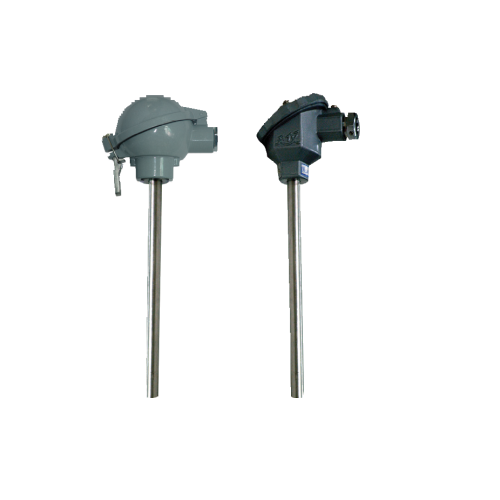

No Fixed Thermal Resistance

Model 00529
  • Pressure Spring type temperature sensing element, good vibration resistance .
  • No need to compensate wire, save costs .
  • High measuring accuracy .
  • High mechanical strength, good compression performance .
  • Imported thin film resistance components, reliable and stable performance .
  • Product implementation standards : IEC 751; JB/T8622-1997 ;JB/T8623-1997.
  • Room temperature insulation resistance.
  • Thermal resistance at ambient temperature of 15~35℃, relative humidity is not 80%, test electricity.
  • The voltage is 10~100 V (DC). The insulation resistance between the electrode and the outer sleeve is not less than 100MΩ .
  • Temperature class:
    Thermal resistance
Description

Thermal resistance is used to measure the temperature of a substance when the temperature changes, its resistance changes with the characteristics of the temperature. When the resistance value changes, the working instrument will display the corresponding temperature value of the resistance value. Usually and display instrument, recording instrument, electronic computer, etc. Directly measure the temperature of liquid, steam and gas medium and solid surface in the range of -200℃~500℃ in various production processes.

Standard Parameter

Type

Dividing sign

Temperature range ℃

Thermal response time

Gauge lattice

D

L

WZP-120
WZP
2-120











Pt100











-200~500

90s



Φ16











300

350

400

450

500

550

650

900

1150

1650

2150

WZP-120G
WZP
2-120G

24s

WZP-121
WZP
2-121

90s



Φ12

WZP- 121G
WZP
2-121G

24s

WZP- 130
WZP
2-130

90s



Φ16

WZP- 130G
WZP
2-130G

24s

WZP- 131
WZP
2-131

90s



Φ12

WZP- 131G
WZP
2-131G

24s

WZC-120G





Cu50
Cu100







-50~100

120s



Φ16

WZC-120

40s

WZC-130

120s

WZC-130G

40s

WZC-121

120s



Φ12

WZC-121G

40s

WZC-131

120s

WZC-131G

40s

1) Models 120 and 121 are blowout preventer, protection class IP65; Models 130 and 131 are waterproof, protection class IP55.
2) The material of the protective tube is 1Cr18Ni9Ti, and the rest materials shall be ordered according to the agreement .
