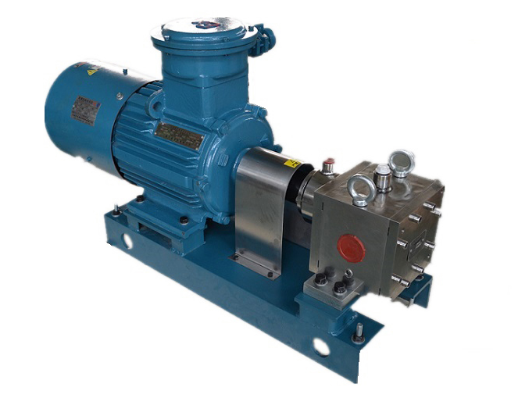

High Viscosity Pump

Model 00525
  • Excellent corrosion resistance ability.
  • With the overloading shaft and bearing,the whole machine is durable.
  • Forced lubrication system and automatic lubrication bushing prolong the service life of pump.
  • The design of coronary roo treduced material shear in pump and improved the utilization rate of energy consumption.
  • Easy dismounting and maintenance.
  • Single-revolution capacity:
    0.79-500
  • Rated flow at maximum speed:
    0.77-150
  • Maximum speed:
    300-1400
Description
Specially designed for high viscosity fluid conveying,pressurization and measurement. By adopting the structure of the special material, setting the side clearance and choosing other options, the pump is suitable for production lines such as the resin, viscose, papermaking. chemical fiber, granulation, plastic film, sheet, plate, profiles, pipes, wire drawing, composite extrusion, etc.
Standard Parameter

Pump Type

Single rotation capacity (cc/rev)

Rated flow rate at maximum speed (L/min)

Maximum speed (rpm)

 Inle/ Outlel dimension

DS55

5

0.77

1400

G1/4"

DS79

0.79

1.106

1400

G3/8"

DS110

1.1

1.54

1400

G3/8"

DS158

1.58

1.5

980

G1/2"

DS253

2.53

2.4

980

G1/2"

DS348

3.48

3.4

980

G1/2"

DS475

4.75

4.6

980

G1/2"

DS712

7.12

6.9

980

G1/2"

DS950

9.50

9.3

980

G1/2"

DM142

14,2

10.2

720

G3/4"

DM214

21.4

15.4

720

G1"

DM320

32.0

23.0

720

G1"

DM600

60,0

33.0

550

G 1 1/2"

DM712

71.2

35.6

500

G 1 1/2"

DM800

80.0

38.4

480

G1 1/2"

DL108

108.0

51.8

480

G 1 1/2"

DL160

160.0

64.0

400

Flange DN50

DL200

200.0

80.0

400

Flange DN50

DL240

240.0

96.0

400

Flange DN50

DL280

280.0

112.0

400

Flange DN65

DL320

320.0

128.0

400

Flange DN65

DL500

500.0

150.0

300

Flange DN65

Note: The above parameters are measured when the inlet and outlet pressure of the pump is 0bar. (If there is a special request, can be customized).
