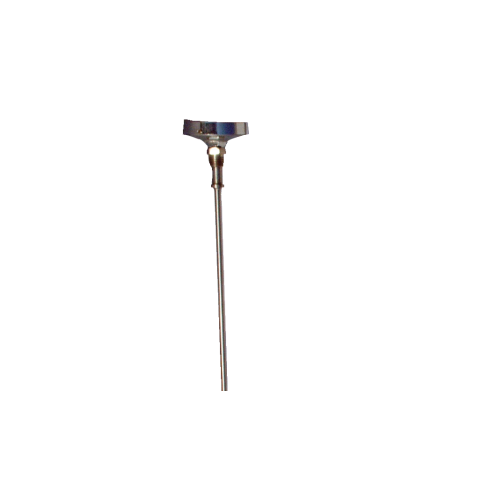

135 Type Bimetallic Thermometer

Name: 135 Type Bimetallic Thermometer
Brand: Purack Website
SKU: 00521
Availability: InStock
Rating: 5 (1 reviews)

Model 00521

Product implementation standards: JB/T8803-1998，GB3836-83 .
The nominal diameter of the dial is 60, 100 and 150.
Accuracy: 1, 1.5 .
Thermal response time: less than 40s .
Protection level: IP55 .
The angle adjustment error should not exceed 1% of its range.
Return difference: thermometer return error should not be greater than the basic error limit value.
Repeatability: the repeatability limit range of thermometers should not be greater than 1 / 2 of the basic error limits.

Inquiry

Description

Bimetallic thermometer is a field measuring instrument for measuring medium and low temperature. The bimetallic thermometer can directly measure the temperature of liquid, steam and gas medium in the range of -80 to +500 ℃ in various production processes. The bimetallic thermometer is based on a bimetallic strip circled and bent. When one end is heated and expanded, the needle is driven to rotate, and the working instrument displays the temperature value of the thermal potential.

Standard Parameter

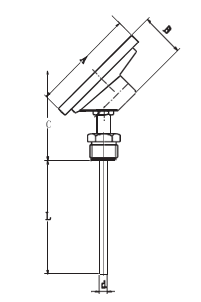

Type	Temperature range ℃	Precision class	Protective tube material	specification		Mounting fixtures
				D	L
WSS-420	-80~+40 -80~+40 0~+80 0~100 0~150 0~200 0~400 0~500	1.5	1Cr18Nl9Ti 304 316 316L Hastelloy C-276	Φ100	75 100 150 200 300 400 500 750 1000	Unfixed device
WSS-520				Φ150
WSS-421				Φ100		Movable external thread
WSS-521				Φ150
WSS-422				Φ100		Internal thread can be moved

WSS-522				Φ150
WSS-432				Φ100		Fixed thread

WSS-532				Φ150
WSS-424				Φ100		Fixed flange
WSS-524				Φ150
WSS-425				Φ100		Jacketed thread

WSS-525				Φ150
WSS-426				Φ100		Sleeve flange
WSS-526				Φ150

135 Type Bimetallic Thermometer
