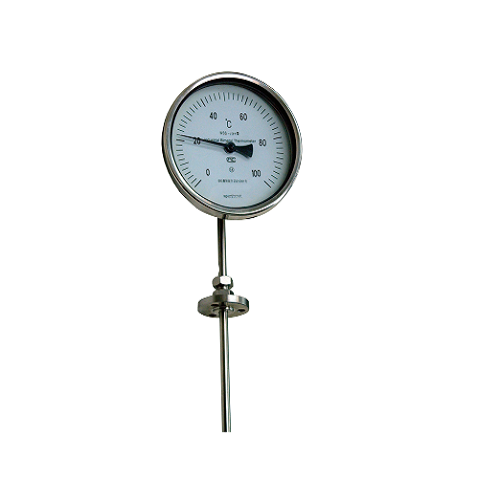

Radial Type Bimetallic Thermometer

Name: Radial Type Bimetallic Thermometer
Brand: Purack Website
SKU: 00520
Availability: InStock
Rating: 5 (1 reviews)

Model 00520

Product implementation standards: JB/T8803-1998，GB3836-83 .
The nominal diameter of the dial is 60, 100 and 150.
Accuracy: 1, 1.5 .
Thermal response time: less than 40s .
Protection level: IP55 .
The angle adjustment error should not exceed 1% of its range.
Return difference: thermometer return error should not be greater than the basic error limit value.
Repeatability: the repeatability limit range of thermometers should not be greater than 1 / 2 of the basic error limits.

Inquiry

Description

Bimetallic thermometer is a field measuring instrument for measuring medium and low temperature. The bimetallic thermometer can directly measure the temperature of liquid, steam and gas medium in the range of -80 to +500 ℃ in various production processes. The bimetallic thermometer is based on a bimetallic strip circled and bent. When one end is heated and expanded, the needle is driven to rotate, and the working instrument displays the temperature value of the thermal potential.

Standard Parameter

Type	Temperature range ℃	Precision class	Protective tube material	specification		Mounting fixtures

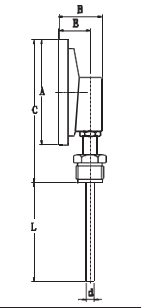

Type	Temperature range ℃	Precision class	Protective tube material	D	L	Mounting fixtures
WSS-310	-80~+40 -80~+40 0~+80 0~100 0~150 0~200 0~400 0~500	1.5	1Cr18Nl9Ti 304 316 316L Hastelloy C-276	Φ60	75 100 150 200 300 400 500 750 1000	Unfixed device
WSS-410				Φ100
WSS-510				Φ150
WSS-311				Φ60		Movable external thread
WSS-411				Φ100
WSS-511				Φ150
WSS-312				Φ60		Internal thread can be moved
WSS-412				Φ100
WSS-512				Φ150
WSS-313				Φ60		Fixed thread
WSS-413				Φ100
WSS-513				Φ150
WSS-314				Φ60		Fixed flange
WSS-414				Φ100
WSS-514				Φ150
WSS-315				Φ60		Jacketed thread
WSS-415				Φ100
WSS-515				Φ150
WSS-316				Φ60		Sleeve flange
WSS-416				Φ100
WSS-516				Φ150

Radial Type Bimetallic Thermometer

Temperature class:
