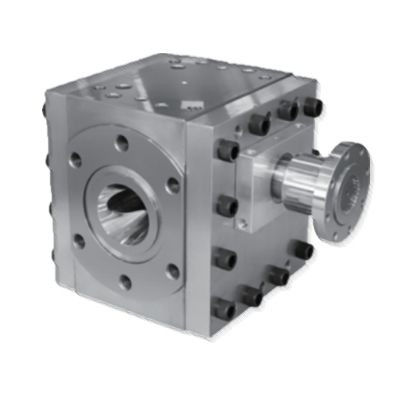

Pipeline Booster Pump

Model P#05
  • Case:High Temperature Tool Steel, Stainless Steel, Alloy Steel .
  • Gear:Nitrided Steel, Tool Steel, Special Steel and Coated gear Shafts .
  • Sliding Bearing:Tool Steel, Copper Aluminum Alloy, Nickel Silver Alloy, Special Materials and Coated Bearings .
  • Shaft Sealing:Mechanical Sealing, Spiral Sealing, Packing Sealing, Packing and Spiral combination Sealing, Double mechanical Sealing with flushing fluid .
  • Heating method:Conduction Oi Heating, Steam Heating, Electrical Heating .
  • DisplacementSpecification:5cc-12000cc .
  • Suction pressure:
    Vacuum(-0.05MPa)- 16Mpa




Description
Melt pump is mainly used for stabilizing, transportation and pressurization of medium and high viscosity medium from the polymer reaction process. It uses heat transfer oil or steam to heat and convey prepolymers and polymers, such as PET, PBT, PS, ABS and many other medium. So that the conveyed media can reach the required pressure.
Standard Parameter
Medium viscosity 0.3mPa.s~40000Pa.s
Working temperature ≤350℃
Suction pressure Vacuum(-0.05MPa)- 16Mpa
Discharge pressure 0~35MPa
Maximum pressure differential 25Mpa
HTM pressure ≤1.6MPa
Related Products
Maximum speed : 720-1500rpm
Single rotation capacity :
1.1-240cc/rev
Maximum speed:300-1400
Single rotation capacity :
0.79-500cc/rev
Maximum speed:1500
Single-revolution capacity:
1.58-9.5cc/rev
Single-revolution capacity:
0.55-500
Maximum speed:300-1500
