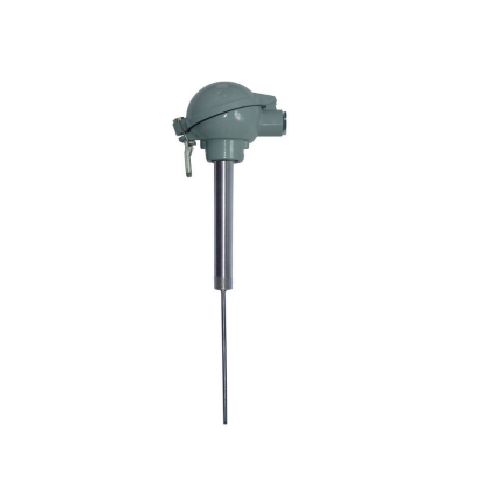

Straight Tube Joint Type Thermocouple

Name: Straight Tube Joint Type Thermocouple
Brand: Purack Website
SKU: 00510
Availability: InStock
Rating: 5 (1 reviews)

Model 00510

Product implementation standards：IEC 584 ; JB/T9238-1999 .
Ambient temperature insulation resistance .
The thermocouple at ambient temperature is 20 + 15 C, the relative humidity is not greater than 80%, the test voltage is 500 + 50V (DC), the insulation resistance between the electrode and the outer sleeve is more than 1000 MΩ .m
Simple assembly and convenient replacement.
The pressure spring type temperature sensing element has good anti vibration performance.
The scope of measurement is large.
High mechanical strength, good pressure resistance .

Inquiry

Description

The electrodes of the thermocouple are made up of two different conductor materials. When there is a temperature difference between the measuring end and the reference end, the thermo electric potential is generated, and the working instrument displays the temperature corresponding to the thermal potential. It is usually used in conjunction with display instruments, recording instruments, computers and so on. Direct measurement of liquid, steam and gas medium and solid surface temperature at 0~1300 C in various production processes.

Standard Parameter

Type	Dividing sign	Temperature range ℃	Connection size	Protective tube material	Gauge lattice
					D	L
WRM-73 WRM2-73	N	0~1100	M20×1.5	0Cr25Ni20	Φ3 Φ4 Φ5 Φ6 Φ8	245 270 295 345 395 445 545 645 745 899 1149
WRM-73A WRM2-73A			NPT1/2
WRN-73 WRN2-73	K		M20×1.5	1Cr18Ni9Ti
WRN-73A WRN2-73A			NPT1/2
WRE-73 WRE2-73	E	0~700	M20×1.5
WRE-73A WRE2-73A			NPT1/2
WRC-73 WRC2-73	T	0~350	M20×1.5
WRC-73A WRC2-73A			NPT1/2
WRF-73 WRF2-73	J	0~600	M20×1.5
WRF-73A WRF2-73A			NPT1/2

1.Models 73 and 73A are waterproof with protection grade IP55.

2.Models 72 and 72A are blowout preventer, protection class IP65, other parameters are the same as 73 and 73A.

3.If there is no special agreement, L is only the reference size, and the insertion depth of the thermocouple should be the size of the hot installation casing U.

Straight Tube Joint Type Thermocouple

Temperature class:
