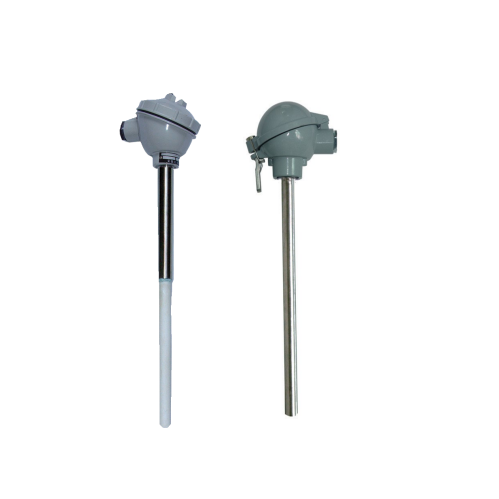

No Fixed Thermocouple

Name: No Fixed Thermocouple
Brand: Purack Website
SKU: 00507
Availability: InStock
Rating: 5 (1 reviews)

Model 00507

Product implementation standards：IEC 584 ; JB/T9238-1999 .
Ambient temperature insulation resistance .
The thermocouple at ambient temperature is 20 + 15 C, the relative humidity is not greater than 80%, the test voltage is 500 + 50V (DC), the insulation resistance between the electrode and the outer sleeve is more than 1000 MΩ .m
Simple assembly and convenient replacement.
The pressure spring type temperature sensing element has good anti vibration performance.
The scope of measurement is large.
High mechanical strength, good pressure resistance .

Inquiry

Description

The electrodes of the thermocouple are made up of two different conductor materials. When there is a temperature difference between the measuring end and the reference end, the thermo electric potential is generated, and the working instrument displays the temperature corresponding to the thermal potential. It is usually used in conjunction with display instruments, recording instruments, computers and so on. Direct measurement of liquid, steam and gas medium and solid surface temperature at 0~1300 C in various production processes.

Standard Parameter

Type	Dividing sign	Temperature range ℃	Thermal response time	Protective tube material	Gauge lattice
					D	L
WRM-122 WRM2-122	N	0～1200	＜240s	High alumina	Φ16	300×150 350×200 400×250 450×300 500×350 550×400 650×500 900×750 1150×1000 1650×1500 2150×2000
WRN-122 WRN2-122	K
WRM-123 WRM2-123	N				Φ20
WRN123 WRN2-123	K
WRM-132 WRM2-132	N				Φ16
WRN-132 WRN2-132	K
WRM-133 WRM2-133	N				Φ20
WRN-133 WRN2-133	K

Type	Dividing sign	Temperature range ℃	Thermal response time	Protective tube material	Gauge lattice
					D	L
WRM-130 WRM2-130	N	0～800	＜90s	1Cr18Ni9Ti	Φ16	150 200 250 300 350 400 500 750 1000 1500 2000 2150
		0～1100		0Cr25Ni20
WRM-130G WRM2-130G		0～800	＜24s	1Cr18Ni9Ti
		0～1100		0Cr25Ni20
WRN-130 WRN2-130	K	0～800	＜90s	1Cr18Ni9Ti
		0～1100		0Cr25Ni20
WRN-130G WRN2-130G		0～800	＜24s	1Cr18Ni9Ti
		0～1100		0Cr25Ni20
WRE-130 WRE2-130	E	0~800	＜90s	1Cr18Ni9Ti
WRE-130G WRE2-130G			＜24s
WRC-130 WRC2-130	T	0~350	＜90s	1Cr18Ni9Ti
WRC-130G WRC2-130G			＜24s
WRF-130 WRF2-130	J	0~600	＜90s	1Cr18Ni9Ti
WRF-130G WRF2-130G			＜24s
WRM-131 WRM2-131	N	0～800	＜90s	1Cr18Ni9Ti	Φ20
		0～1100		0Cr25Ni20
WRM-131G WRM2-131G		0～800	＜24s	1Cr18Ni9Ti
		0～1100		0Cr25Ni20
WRN-131 WRN2-131	K	0～800	＜120s	1Cr18Ni9Ti
		0～1100		0Cr25Ni20
WRN-131G WRN2-131G		0～800	＜24s	1Cr18Ni9Ti
		0～1100		0Cr25Ni20
WRE-131 WRE2-131	E	0~800	＜120s	1Cr18Ni9Ti
WRE-131G WRE2-131G			＜24s
WRC-131 WRC2-131	T	0~350	＜120s	1Cr18Ni9Ti
WRC-131G WRC2-131G			＜24s
WRF-131 WRF2-131	J	0~600	＜120s	1Cr18Ni9Ti
WRF-131G WRF2-131G			＜24s

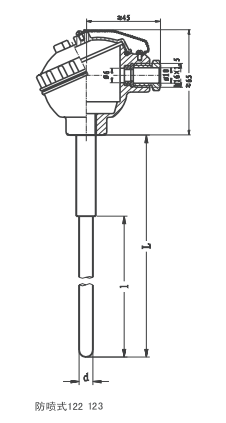

1.Models 122 and 123 are blowout preventer, protection class IP65; Models 132, 133 are waterproof, protection class IP55.

2.Models 130 and 131 are waterproof with protection class IP55.

3.Models 120 and 121 are blowout preventer, protection class IP65, other parameters are the same as 130 and 131.

4.Other materials of protection tube shall be ordered according to the agreement.
