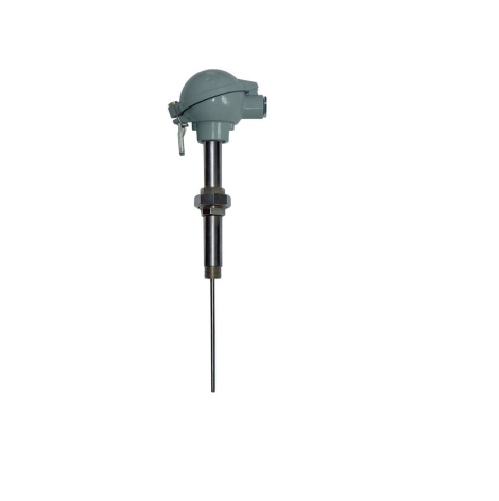

Flexible Tube Joint Type Thermocouple

Model 00509
  • Product implementation standards:IEC 584 ; JB/T9238-1999 .
  • Ambient temperature insulation resistance .
  • The thermocouple at ambient temperature is 20 + 15 C, the relative humidity is not greater than 80%, the test voltage is 500 + 50V (DC), the insulation resistance between the electrode and the outer sleeve is more than 1000 MΩ .m
  • Simple assembly and convenient replacement.
  • The pressure spring type temperature sensing element has good anti vibration performance.
  • The scope of measurement is large.
  • High mechanical strength, good pressure resistance .
  • Temperature class:
    Thermocouple
Description
The electrodes of the thermocouple are made up of two different conductor materials. When there is a temperature difference between the measuring end and the reference end, the thermo electric potential is generated, and the working instrument displays the temperature corresponding to the thermal potential.  It is usually used in conjunction with display instruments, recording instruments, computers and so on. Direct measurement of liquid, steam and gas medium and solid surface temperature at 0~1300 C in various production processes.
Standard Parameter

Type

Dividing sign

Temperature range ℃

Connection size

Protective tube material

Gauge lattice

D

L

WRM-53
WRM
2-53

N

01100

M20×1.5

0Cr25Ni20

Φ3
Φ4
Φ5
Φ6
Φ8

 245

270

295

345

395

445

545

645

745

899

1149

WRM-53A
WRM
2-53A

 NPT1/2

WRN-53
WRN
2-53

 K

M20×1.5

1Cr18Ni9Ti

WRN-53A
WRN
2-53A

 NPT1/2

WRE-53
WRE
2-53

 E

 0~700

M20×1.5

WRE-53A
WRE
2-53A

 NPT1/2

WRC-53
WRC
2-53

 T

 0~350

M20×1.5

WRC-53A
WRC
2-53A

 NPT1/2

WRF-53
WRF
2-53

 J

 0~600

M20×1.5

WRF-53A
WRF
2-53A

 NPT1/2

1.Models 53 and 53A are waterproof with protection class IP55.
2.Models 52 and 52A are blowout preventer, protection class IP65, other parameters are the same as 53 and 53A.
3.If there is no special agreement, L is only the reference size, and the insertion depth of the thermocouple should be the size of the hot installation casing U .
