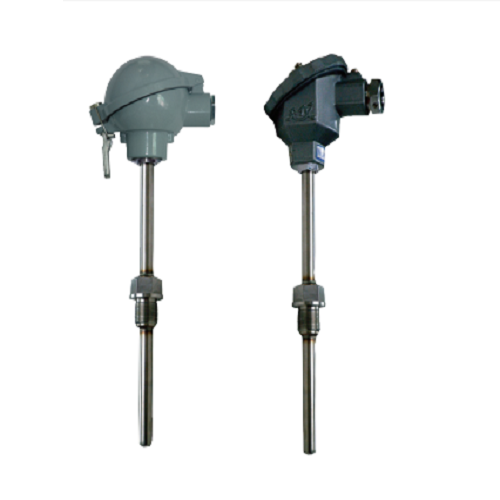

Fixed Threaded Thermal Resistance

Model 00512
  • Pressure Spring type temperature sensing element, good vibration resistance .
  • No need to compensate wire, save costs .
  • High measuring accuracy .
  • High mechanical strength, good compression performance .
  • Imported thin film resistance components, reliable and stable performance .
  • Product implementation standards : IEC 751; JB/T8622-1997 ;JB/T8623-1997.
  • Room temperature insulation resistance.
  • Thermal resistance at ambient temperature of 15~35℃, relative humidity is not 80%, test electricity.
  • The voltage is 10~100 V (DC). The insulation resistance between the electrode and the outer sleeve is not less than 100MΩ .
  • Temperature class:
    Thermal resistance
Description
Thermal resistance is used to measure the temperature of a substance when the temperature changes, its resistance changes with the characteristics of the temperature. When the resistance value changes, the working instrument will display the corresponding temperature value of the resistance value. Usually and display instrument, recording instrument, electronic computer, etc. Directly measure the temperature of liquid, steam and gas medium and solid surface in the range of -200~500℃ in various production processes.
Standard Parameter

Type

Dividing sign

Temperature range ℃

Thermal response time

Gauge lattice

D

L

WZP-220
WZP
2-220

Pt100

-200~500

90s



φ16

300×150

350×200

400×250

450×300

500×350

550×400

650×500

900×750

1150×1000

1650×1500

2150×2000

WZP-220G
WZP
2-220G

24s

WZP-221
WZP
2-221

90s



φ12

WZP- 221G
WZP
2-221G

24s

WZP- 230
WZP
2-230

90s



φ16

WZP- 230G
WZP
2-230G

24s

WZP- 231
WZP
2-231

90s



φ12

WZP- 231G
WZP
2-231G

24s

WZC-220

 Cu50 Cu100

  -50~100

120s

 φ16

WZC-220G

40s

WZC-230

120s

WZC-230G

40s

WZC-221

120s

 φ12

WZC-221G

40s

WZC-231

120s

WZC-231G

40s

1.Models 220 and 221 are blowout preventer, protection class IP65; Models 230 and 231 are waterproof, protection class IP55.
2.The material of the protective tube is 1Cr18Ni9Ti, and the rest materials shall be ordered according to the agreement.
3.Nominal pressure ≤4.0MPa.
