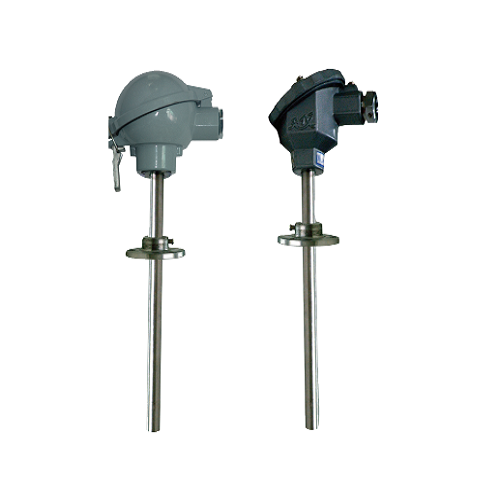

Movable Flange Type Thermal Resistance

Name: Movable Flange Type Thermal Resistance
Brand: Purack Website
SKU: 00513
Availability: InStock
Rating: 5 (1 reviews)

Model 00513

Pressure Spring type temperature sensing element, good vibration resistance .
No need to compensate wire, save costs .
High measuring accuracy .
High mechanical strength, good compression performance .
Imported thin film resistance components, reliable and stable performance .
Product implementation standards : IEC 751； JB/T8622-1997 ；JB/T8623-1997.
Room temperature insulation resistance.
Thermal resistance at ambient temperature of 15~35℃, relative humidity is not 80%, test electricity.
The voltage is 10~100 V (DC). The insulation resistance between the electrode and the outer sleeve is not less than 100MΩ .

Inquiry

Description

Thermal resistance is used to measure the temperature of a substance when the temperature changes, its resistance changes with the characteristics of the temperature. When the resistance value changes, the working instrument will display the corresponding temperature value of the resistance value. Usually and display instrument, recording instrument, electronic computer, etc. Directly measure the temperature of liquid, steam and gas medium and solid surface in the range of -200℃~500℃ in various production processes.

Standard Parameter

Type	Dividing sign	Temperature range ℃	Thermal response time	Gauge lattice
				D	L
WZP-320 WZP2-320	Pt100	-200~500	＜90s	Φ16	300 350 400 450 500 550 650 900 1150 1650 2150
WZP-320G WZP2-320G			＜24s
WZP-32 WZP2-321			＜90s	Φ12
WZP- 321G WZP2-321G			＜24s
WZP-330 WZP2-330			＜90s	Φ16
WZP- 330G WZP2-330G			＜24s
WZP- 331 WZP2-331			＜90s	Φ12
WZP- 331G WZP2-331G			＜24s
WZC-320	Cu50 Cu100	-50~100	＜120s	Φ16
WZC-320G			＜40s
WZC-330			＜120s
WZC-330G			＜40s
WZC-321			＜120s	Φ12
WZC-321G			＜40s
WZC-331			＜120s
WZC-331G			＜40s

1.Models 320 and 321 are blowout preventer, protection class IP65; Models 330, 331 are waterproof, protection class IP55 .

2.The material of the protective tube is 1Cr18Ni9Ti, and the rest materials shall be ordered according to the agreement .

Movable Flange Type Thermal Resistance

Temperature class:
