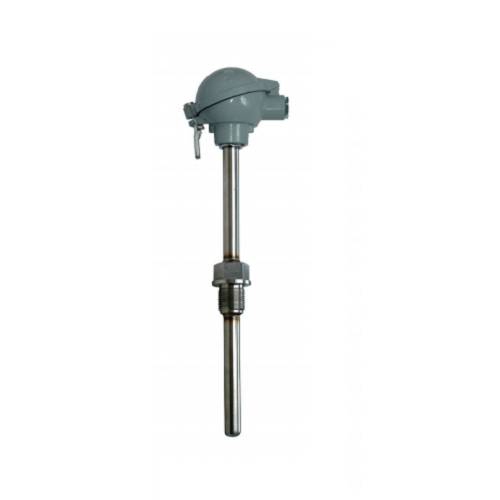

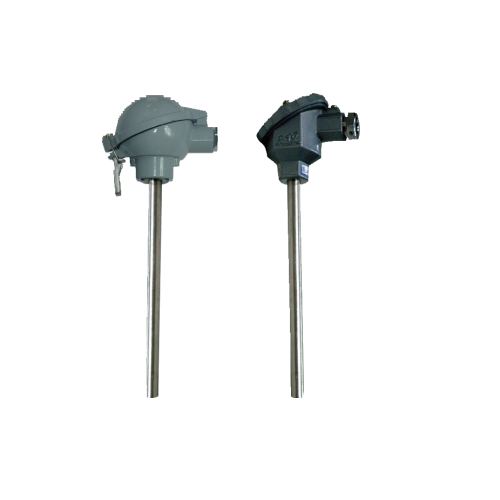

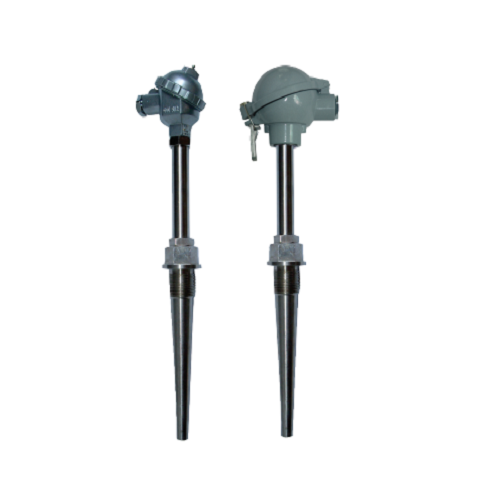

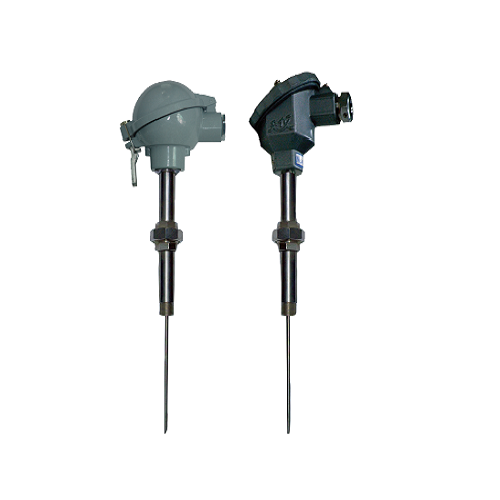

Fixed Thread Type Thermocouple

Name: Fixed Thread Type Thermocouple
Brand: Purack Website
SKU: 00506
Availability: InStock
Rating: 5 (1 reviews)

Model 00506

Product implementation standards：IEC 584 ; JB/T9238-1999 .
Ambient temperature insulation resistance .
The thermocouple at ambient temperature is 20 + 15 C, the relative humidity is not greater than 80%, the test voltage is 500 + 50V (DC), the insulation resistance between the electrode and the outer sleeve is more than 1000 MΩ .m
Simple assembly and convenient replacement.
The pressure spring type temperature sensing element has good anti vibration performance.
The scope of measurement is large.
High mechanical strength, good pressure resistance .

Inquiry

Description

The electrodes of the thermocouple are made up of two different conductor materials. When there is a temperature difference between the measuring end and the reference end, the thermo electric potential is generated, and the working instrument displays the temperature corresponding to the thermal potential. It is usually used in conjunction with display instruments, recording instruments, computers and so on. Direct measurement of liquid, steam and gas medium and solid surface temperature at 0~1300 C in various production processes.

Standard Parameter

Type	Dividing sign	Temperature range ℃	Thermal response time	Protective tube material	Gauge lattice
					D	L
WRM-230 WRM2-230	N	0～800	＜90s	1Cr18Ni9Ti	Φ16	300×150 350×200 400×250 450×300 500×350 550×400 650×500 900×750 1150×1000 1650×1500 2150×2000
		0～1100		0Cr25Ni20
WRM-230G WRM2-230G		0～800	＜24s	1Cr18Ni9Ti
		0～1100		0Cr25Ni20
WRN-230 WRN2-230	K	0～800	＜90s	1Cr18Ni9Ti
		0～1100		0Cr25Ni20
WRN-230G WRN2-230G		0～800	＜24s	1Cr18Ni9Ti
		0～1100		0Cr25Ni20
WRE-230 WRE2-230	E	0~800	＜90s	1Cr18Ni9Ti
WRE-230G WRE2-230G			＜24s
WRC-230 WRC2-230	T	0~350	＜90s	1Cr18Ni9Ti
WRC-230G WRC2-230G			＜24s
WRF-230 WRF2-230	J	0~600	＜90s	1Cr18Ni9Ti
WRF-230G WRF2-230G			＜24s
WRM-231 WRM2-231	N	0～800	＜120s	1Cr18Ni9Ti	Φ20
		0～1100		0Cr25Ni20
WRM-231G WRM2-231G		0～800	＜24s	1Cr18Ni9Ti
		0～1100		0Cr25Ni20
WRN-231 WRN2-231	K	0～800	＜120s	1Cr18Ni9Ti
		0～1100		0Cr25Ni20
WRN-231G WRN2-231G		0～800	＜24s	1Cr18Ni9Ti
		0～1100		0Cr25Ni20
WRE-231 WRE2-231	E	0~800	＜120s	1Cr18Ni9Ti
WRE-231G WRE2-231G			＜24s
WRC-231 WRC2-231	T	0~350	＜120s	1Cr18Ni9Ti
WRC-231G WRC2-231G			＜24s
WRF-231 WRF2-231	J	0~600	＜120s	1Cr18Ni9Ti
WRF-231G WRF2-231G			＜24s

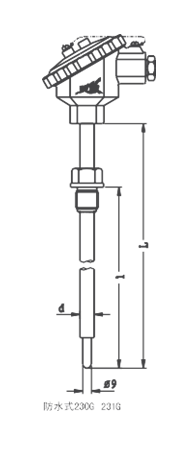

1.Models 230 and 231 are waterproof, protection class IP55; Models 220 and 221 are blowout preventer, protection class IP65, other parameters are the same as 230 and 231.

2.Other materials of the protective tube shall be ordered according to the agreement;

3.Nominal pressure is 4.0MPa.

Fixed Thread Type Thermocouple

Temperature class:
