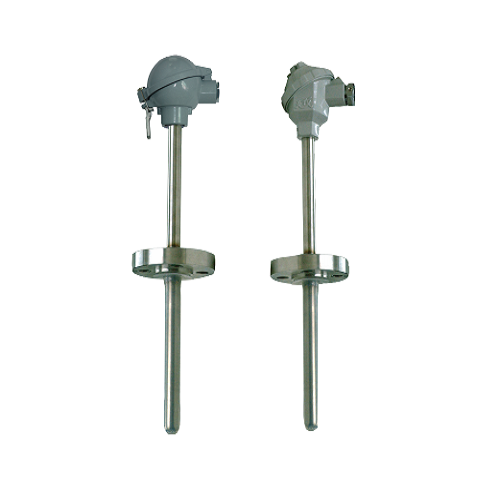

Fixed Flange Type Thermal Resistance

Name: Fixed Flange Type Thermal Resistance
Brand: Purack Website
SKU: 00514
Availability: InStock
Rating: 5 (1 reviews)

Model 00514

Pressure Spring type temperature sensing element, good vibration resistance .
No need to compensate wire, save costs .
High measuring accuracy .
High mechanical strength, good compression performance .
Imported thin film resistance components, reliable and stable performance .
Product implementation standards : IEC 751； JB/T8622-1997 ；JB/T8623-1997.
Room temperature insulation resistance.
Thermal resistance at ambient temperature of 15~35℃, relative humidity is not 80%, test electricity.
The voltage is 10~100 V (DC). The insulation resistance between the electrode and the outer sleeve is not less than 100MΩ .

Inquiry

Description

Thermal resistance is used to measure the temperature of a substance when the temperature changes, its resistance changes with the characteristics of the temperature. When the resistance value changes, the working instrument will display the corresponding temperature value of the resistance value. Usually and display instrument, recording instrument, electronic computer, etc. Directly measure the temperature of liquid, steam and gas medium and solid surface in the range of -200℃~500℃ in various production processes.

Standard Parameter

Type	Dividing sign	Temperature range ℃	Thermal response time	Gauge lattice
				D	L
WZP-420 WZP2-420	Pt100	-200~500	＜90s	Φ16	300×150 350×200 400×250 450×300 500×350 550×400 650×500 900×750 1150×1000 1650×1500 2150×2000
WZP-420 WZP2-420			＜24s
WZP-421 WZP2-421			＜90s	Φ12
WZP- 421G WZP2-421G			＜24s
WZP- 430 WZP2-430			＜90s	Φ16
WZP- 430G WZP2-430G			＜24s
WZP- 431 WZP2-431			＜90s	Φ12
WZP- 431G WZP2-431G			＜24s
WZC-420G	Cu50 Cu100	-50~100	＜120s	Φ16
WZC-420			＜40s
WZC-430			＜120s
WZC-430G			＜40s
WZC-421			＜120s	Φ12
WZC-421G			＜40s
WZC-431			＜120s
WZC-431G			＜40s

1.Models 420 and 421 are blowout preventer, protection class IP65; Models 430, 431 are waterproof, protection class IP55.

2.The material of the protective tube is 1Cr18Ni9Ti, and the rest materials shall be ordered according to the agreement.

3.Nominal pressure ≤4.0MPa.

Model example	Falangite
Model example	D	D1	D2	H	d
WZP-420	Φ95	Φ65	Φ46	14	Φ12、Φ16
WZP-420G	Φ95	Φ65	Φ46	14	Φ12、Φ16
WZP-421	Φ95	Φ65	Φ46	14	Φ12、Φ16
WZP-421G	Φ95	Φ65	Φ46	14	Φ12、Φ16

Fixed Flange Type Thermal Resistance

Temperature class:
